1. Introduction: The Essential Role of Open Frame Touch Screens in Custom Solutions
In a world where interactive technology is increasingly embedded into every facet of our environment, Open Frame Touch Screen Monitors serve as the foundational building blocks for a myriad of custom applications. These specialized displays offer the flexibility and robustness required to bring innovative and integrated touch solutions to life.
- Defining Open Frame Touch Screen Monitors: Design and Purpose An Open Frame Touch Screen Monitor is a display unit that lacks a conventional full bezel or enclosure. It typically consists of the LCD panel, touch sensor, control boards, and a basic metal chassis with mounting points. This “bare-bones” design is intentional, allowing system integrators to seamlessly embed the monitor into their own custom housings, suchias kiosks, industrial machinery, control panels, or specialized equipment. The focus is on providing the core display and touch functionality in a format optimized for integration.
- Why Open Frame? The Advantages for Integrators and Custom Enclosures Open frame monitors offer several key advantages for designers and integrators:
- Seamless Integration: They can be flush-mounted for a clean, professional look, appearing as an integral part of the final product.
- Design Flexibility: Integrators have complete control over the aesthetics and functionality of the surrounding enclosure.
- Space Optimization: Their compact design is ideal for applications where space is at a premium.
- Customization: Often serve as a base for tailored solutions, fitting specific dimensional and operational requirements.
- Durability: Many are built with industrial-grade components suitable for demanding environments once properly integrated.
- Introducing Faytech North America: Specializing in Touch Technology for Integration Faytech North America, part of the German-engineered Faytech AG, is a prominent manufacturer of touch screen solutions. A significant portion of their expertise lies in providing robust and reliable displays for industrial, commercial, and OEM applications. Their Open Frame Touch Screen Monitor line is a testament to this focus, offering a range of sizes and technologies designed specifically for ease of integration and long-term performance. Faytech often emphasizes its in-house capabilities, including its proprietary “Clear-Bond” optical bonding process. (Placeholder: Link to Faytech North America’s “OEM/ODM Solutions” or “About Us” page)
- Scope of This Review: What Integrators and Designers Will Learn This review is specifically aimed at system integrators, kiosk manufacturers, industrial designers, and OEMs. We will provide a detailed examination of Faytech North America’s Open Frame Touch Screen Monitor portfolio, focusing on features relevant to integration, performance characteristics, customization options, and overall value. Our goal is to equip you with the necessary insights to determine if Faytech’s open frame solutions are the right fit for your next custom project.

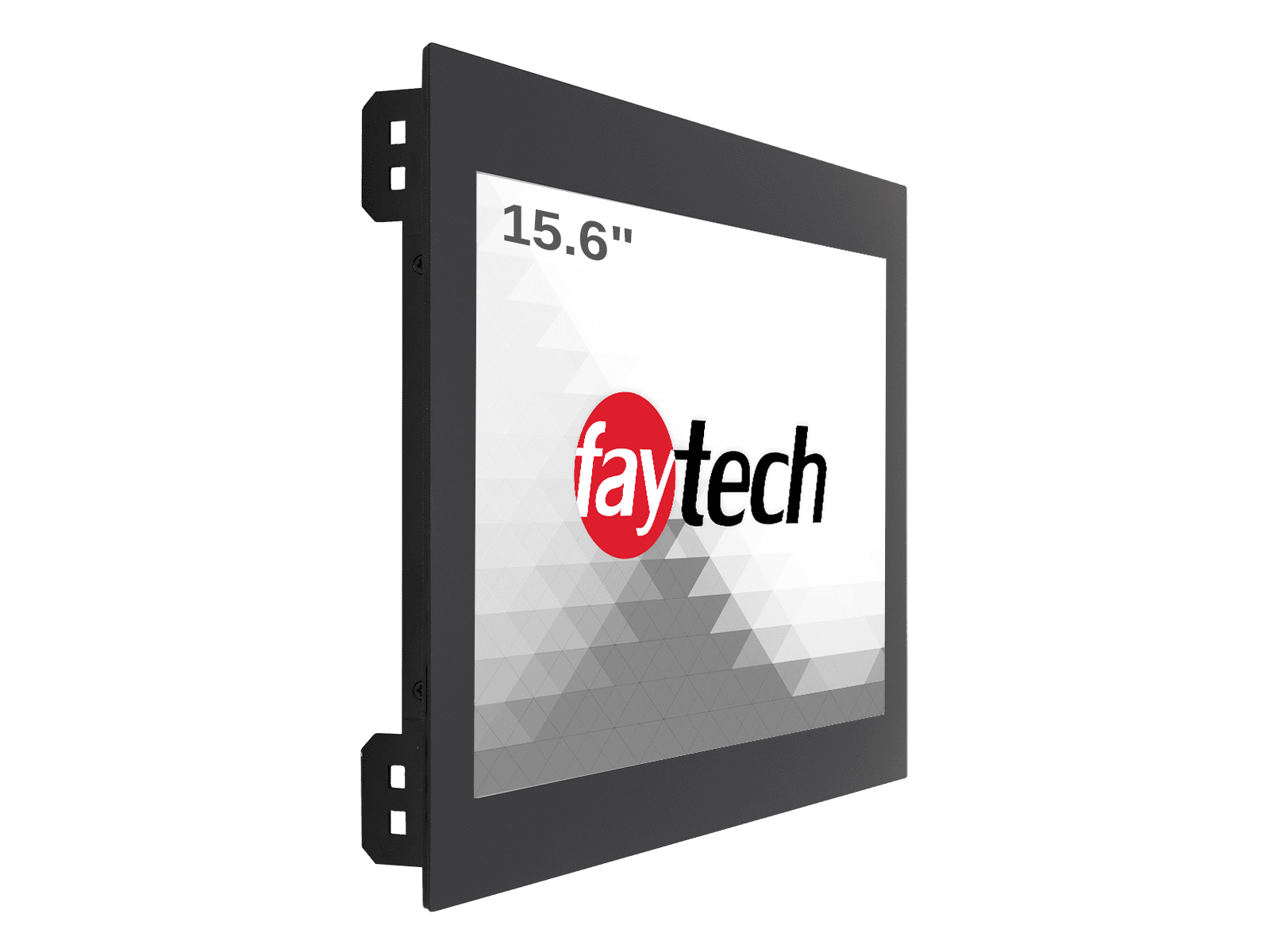

2. Faytech North America Open Frame Touch Screen Monitor Portfolio: Features Built for Integration
Faytech North America open frame monitors are engineered with the specific needs of integrators in mind, balancing performance, durability, and ease of embedding.
- Core Design Philosophy:
- Frameless Front for Seamless Embedding: The primary characteristic is the absence of a front bezel, allowing the active display area to sit flush within a custom cutout, ensuring the available space is exclusively utilized for visual information and interaction.
- Lightweight yet Stable Construction: Typically built with an aluminum chassis or robust metal framework that provides structural integrity without excessive weight, simplifying handling and mounting.
- Display Characteristics and Visual Quality:
- Range of Screen Sizes and Aspect Ratios: Faytech offers a wide selection, from smaller 7-inch units suitable for compact control panels, up to very large displays of 43 inches, 55 inches, and beyond for digital signage or interactive kiosks. Various aspect ratios (e.g., 4:3, 16:9, 16:10) are available.
- Resolutions: Resolutions scale with screen size, including HD, Full HD (1920×1080), and 4K UHD (3840×2160) for larger models, ensuring crisp and detailed image quality.
- Brightness Options:
- Standard brightness (e.g., 250-500 cd/m²) suitable for many indoor environments.
- High Brightness (HB) options, often 1000 cd/m² or more, are critical for outdoor applications or areas with high ambient light, ensuring excellent sunlight readability.
- Contrast Ratios and Wide Viewing Angles: Generally high contrast ratios (e.g., 1000:1 to 3000:1) and wide viewing angles (typically 178°/178°) ensure content is clear and legible from various perspectives.
- Optical Bonding (Faytech’s “Clear-Bond” Technology): A key feature heavily promoted by Faytech. This process uses a liquid optical adhesive to bond the touch panel directly to the LCD. For open frame units, this offers:
- Enhanced Clarity & Reduced Glare: Minimizes internal reflections, improving readability even in challenging lighting.
- Increased Durability: Makes the screen assembly more robust against shock and vibration, and prevents dust or moisture ingress between layers.
- Improved Touch Accuracy: Eliminates parallax error.
- Better Heat Dissipation.
- Anti-Glare Surface Treatment (e.g., chemical etching): Most models feature an anti-glare surface to further diffuse external light and improve visibility.
- Touch Technology and Interaction:
- Predominantly Projected Capacitive (PCAP) 10-Finger Multi-Touch Technology: Offers a smooth, responsive, and intuitive touch experience akin to modern smartphones and tablets, supporting gestures like pinch-to-zoom and swipe.
- Touch Panel Durability: The cover glass is often chemically strengthened, boasting a surface hardness of 7H (Mohs scale), providing excellent resistance to scratches and wear in public or industrial settings.
- Responsiveness and Accuracy: Designed for precise touch detection and quick response times.
- Options for Resistive Touch: While PCAP is dominant, resistive touch options may be available for specific legacy applications or where operation with very thick or specialized gloves is a primary concern.
- Connectivity and Power:
- Standard Video Inputs: Typically include HDMI, DisplayPort (DP), DVI, and VGA to ensure compatibility with a wide range of host systems.
- USB for Touch Interface: A standard USB Type-B port is usually provided to connect the touch functionality to the host computer.
- Serial Port Options (RS232): Some models may include serial ports for touch interface or other control purposes.
- DC Power Input: Typically powered by a 12V or 24V DC input, often with a screwable connector for a secure and reliable power connection, vital in embedded systems.
- Longevity and Reliability:
- LED Backlight Lifespan: Faytech often specifies long lifespans for their LED backlights, with some high-brightness models rated for up to 100,000 hours of operation (almost 12 years of continuous 24/7 use).
- Industrial-Grade Components: Built with components selected for reliability and extended service in continuous use applications.
Faytech Open Frame Monitor – Key Specification Ranges (Examples)
| Feature | Typical Faytech Open Frame Offering | Notes for Integrators |
|---|---|---|
| Screen Sizes | 7″ to 55″+ | Wide selection for diverse enclosure sizes |
| Resolution | HD, Full HD, 4K UHD | Match to application’s visual detail needs |
| Brightness | Standard (250-500 nits), High Brightness (1000+ nits) | Critical for ambient light conditions, especially outdoor |
| Touch Technology | PCAP 10-finger multi-touch (primary) | Smooth, intuitive interaction; durable glass surface (7H) |
| Key Feature | Optical Bonding (“Clear-Bond”) | Enhances visuals, durability, touch accuracy; reduces glare |
| Connectivity | HDMI, DP, DVI, VGA, USB (Touch), Serial (optional) | Versatile interface options |
| Power | 12V / 24V DC (often with screwable connector) | Secure power for embedded systems |
| Mounting | VESA, Rear Clamp Support | Designed for flexible and secure integration |
| Operating Temp. | Wide ranges, e.g., -10°C to +60°C | Suitable for various industrial and outdoor enclosures |
Export to Sheets
(Placeholder: Link to Faytech North America’s detailed Open Frame Monitor specifications and datasheets)
3. Designed for Integration: Mounting, Form Factor, and Customization
Faytech’s open frame monitors are specifically engineered to simplify the integration process into custom designs.
- Mounting Flexibility:
- VESA Mounting Patterns: Most units include standard VESA (e.g., 75×75, 100×100, larger for bigger screens) mounting holes on the rear chassis, allowing for attachment to VESA-compatible arms or internal structures within an enclosure.
- Clamp Support Systems: Faytech often provides or specifies clamp support solutions. These allow the monitor to be securely fixed into a panel cutout from the rear, ensuring a tight and flush fit. Datasheets usually specify the number and placement of clamps required.
- Design for Flush Mounting: The open frame nature inherently allows for the active display area to be perfectly flush with the front surface of the enclosure, creating a sleek, professional, and often sealed final product.
- Physical Dimensions and Cut-Out Requirements: Precision is key for seamless integration. Faytech provides detailed mechanical drawings and datasheets for each open frame model. These documents specify:
- Overall unit dimensions (width, height, depth).
- Precise cut-out dimensions required in the host panel for the display area.
- Location and dimensions for clamp supports or other mounting features.
- It is crucial for integrators to strictly adhere to these specifications. (Placeholder: Example image or diagram showing typical open frame mounting and cut-out dimensions)
- Faytech’s Modular Approach (Front Kit / Back Kit system): Faytech emphasizes a modular design philosophy, often separating the “Front Kit” (display unit, touch panel) and “Back Kit” (PC unit for their Touch PCs, or I/O board for monitors). While more directly applicable to their enclosed monitors and PCs, this philosophy influences their open frame designs by allowing for:
- Standardized Components: Potentially leading to more consistent quality and availability.
- Customization Flexibility: Easier to offer variations in I/O or other features for larger volume OEM projects.
- Customization Options: Beyond standard catalog products, Faytech is known for its willingness to engage in OEM/ODM projects. For open frame monitors, potential customizations (typically for volume orders) could include:
- Specific branding (e.g., logo on startup).
- Minor modifications to housing or mounting points.
- Custom cable lengths or connector types.
- Firmware adjustments. (Placeholder: Link to Faytech’s OEM/ODM services page or contact for custom projects)
4. Ideal Applications: Where Faytech Open Frame Touch Screens Shine
The versatility of Faytech North America’s open frame touch screen monitors makes them suitable for a vast range of embedded applications:
- Interactive Kiosks:
- Information kiosks (malls, transport hubs, tourist centers, museums).
- Wayfinding kiosks.
- Self-service kiosks (ticketing, check-in, ordering, payment).
- Retail product information and interactive advertising kiosks.
- Industrial Machinery & Control Panels (HMI):
- Integrated displays for operating and monitoring industrial equipment.
- Control panels for automation systems.
- Data visualization interfaces on the factory floor.
- Gaming Machines and Vending Solutions:
- Embedded touch screens for slot machines, arcade games, and other interactive gaming devices.
- Touch interfaces for smart vending machines.
- Digital Signage:
- Interactive digital signage displays embedded in custom fixtures or architectural elements.
- Robust displays for public information systems.
- Medical Equipment Interfaces:
- Control panels and displays for various types of medical and laboratory devices where a clean, integrated interface is required.
- Transportation Systems:
- Ticketing machines, passenger information displays, and control interfaces in trains, buses, and other vehicles.
- Custom OEM/ODM Projects: Any project that requires a durable, reliable touch screen to be seamlessly integrated into a unique product design or enclosure.
(Placeholder: Image gallery showcasing various applications of open frame touch screen monitors – e.g., a kiosk, an industrial control panel, a gaming machine)
5. Integrating Faytech Open Frame Monitors: Practical Considerations
Successful integration of an open frame monitor requires careful planning and execution.
- Mechanical Integration:
- Precise Cut-Outs: Adherence to Faytech’s specified panel cut-out dimensions is critical for a proper fit and professional finish.
- Secure Mounting: Utilizing the provided clamp supports or VESA mounting points correctly ensures the monitor is stable and secure within the enclosure.
- Structural Support: The enclosure must provide adequate support for the monitor, especially for larger and heavier units.
- Ventilation: Although open frame monitors are designed for embedded use, adequate ventilation within the final enclosure is important to manage heat dissipation from the monitor and other internal components, ensuring long-term reliability.
- Serviceability: Design the enclosure with consideration for potential future access to the monitor’s connections or for servicing.
- Electrical Integration:
- Stable Power Supply: Provide a clean and stable DC power source according to the monitor’s specifications. Secure screwable connectors are advantageous.
- Cable Management: Plan for neat and secure routing of video, USB (touch), and power cables within the enclosure to prevent strain, pinching, or interference.
- EMI/RFI Shielding: In environments with high electromagnetic or radio frequency interference, the overall enclosure design may need to incorporate shielding to protect the monitor and host system.
- Software and Driver Compatibility:
- Most Faytech capacitive open frame monitors use standard HID (Human Interface Device) drivers, making them plug-and-play with modern operating systems like Windows, Linux, and Android.
- Always check Faytech’s support page for any specific drivers or calibration utilities if issues arise or if using older/less common OS versions. (Placeholder: Link to Faytech’s driver download or support page)
- Environmental Sealing: While Faytech open frame monitors may have an IP65-rated front surface (once properly installed), the overall IP rating of the final integrated product depends heavily on the design and sealing of the custom enclosure by the integrator. The open frame monitor itself is not fully sealed from the rear.
- Gasketing: Proper gasketing between the monitor’s front edge and the enclosure cutout is crucial to achieve a sealed front.
Integration Checklist:
- [ ] Verify all critical dimensions from Faytech’s datasheet.
- [ ] Plan for precise panel cut-outs.
- [ ] Select appropriate mounting method (clamps, VESA).
- [ ] Ensure adequate structural support in the enclosure.
- [ ] Plan for proper ventilation and thermal management.
- [ ] Route cables securely and allow for service access.
- [ ] Implement proper gasketing for front panel sealing if required.
- [ ] Test software and driver compatibility.
6. Performance and Reliability in Embedded Systems
Once integrated, Faytech open frame monitors are expected to deliver consistent performance.
- Visual Performance in Integrated Setups:
- The optical bonding and anti-glare treatments are designed to maintain excellent clarity, contrast, and wide viewing angles even when viewed through an additional protective layer in some kiosk designs (though direct interaction is typical).
- High brightness models ensure readability in the intended operational environment.
- Touch Performance:
- The PCAP touch technology should provide a reliable and accurate multi-touch experience. The quality of integration (e.g., ensuring no undue pressure on the screen) can influence long-term touch stability.
- Thermal Management within Enclosures: While Faytech monitors are designed for industrial temperature ranges, the overall thermal performance of the final system depends on the enclosure’s design, internal component heat load, and ventilation strategy. Integrators must manage this.
- Long-Term Durability and Maintenance within an Enclosure:
- Built with industrial-grade components and long-life LED backlights, these monitors are designed for continuous operation.
- Maintenance typically involves ensuring the enclosure remains clean and that ventilation paths (if any) are clear. The touch surface itself is durable and easy to clean.
7. Benefits for Integrators and OEMs
Choosing Faytech open frame touch screen monitors can offer significant advantages for custom projects:
- Seamless Aesthetic Integration: The frameless design allows for a clean, modern, and fully integrated look, making the touch screen appear as a natural part of the end product.
- Space Efficiency: Optimal use of space within an enclosure, as there’s no bulky external bezel.
- Reliability and Durability: Industrial-grade construction, 7H hardened glass, and features like optical bonding contribute to a robust solution that can withstand demanding use.
- Flexibility in Design: A wide range of sizes, brightness options, and connectivity provides ample choice for diverse applications.
- Potentially Reduced Development Time: Using a pre-engineered and tested open frame solution can be faster than developing a custom display assembly from scratch.
- Enhanced User Experience for the End Product: High-quality displays with responsive touch contribute positively to the overall user satisfaction of the integrated system.
- Focus on Core Competencies: Integrators can focus on their core product design and software, relying on Faytech for the specialized touch display component.
8. Potential Challenges and Best Practices for Integration
While open frame monitors offer flexibility, successful integration requires attention to detail:
- Ensuring Proper Sealing (if required by the application):
- Challenge: The integrator is responsible for the final seal between the monitor’s front and the enclosure. Achieving a high IP rating for the entire unit depends on this.
- Best Practice: Use appropriate gasketing materials and ensure a precise, uniform fit as per Faytech’s guidelines and the application’s sealing requirements.
- Managing Heat Dissipation within Custom Enclosures:
- Challenge: Confined spaces can trap heat.
- Best Practice: Design the enclosure with adequate passive or active ventilation, considering the heat output of the monitor and other components.
- Cable Routing and Accessibility for Service:
- Challenge: Poorly managed cables can lead to failures or difficult servicing.
- Best Practice: Plan cable paths carefully, use appropriate strain relief, and design for reasonable access to connectors if future maintenance is anticipated.
- Precise Cut-Outs and Mounting:
- Challenge: Inaccurate cut-outs can lead to poor fit, stress on the monitor, or sealing issues.
- Best Practice: Use CNC machining or other precise methods for panel cut-outs, strictly following Faytech’s mechanical drawings. Ensure all mounting clamps are correctly engaged and tensioned.
9. Faytech Open Frame Monitors vs. Competing Solutions
The open frame market includes several strong competitors.
- Key Competitors in the Open Frame Market:
- Elo Touch Solutions: A very well-known brand with a broad range of open frame touch screens.
- Planar Systems: Offers displays for various demanding applications, including open frame options.
- Advantech: A major provider of industrial computing and display solutions, including open frame monitors.
- ViewSonic, LG, and others: Also offer open frame solutions, sometimes targeting different segments.
- Faytech’s Differentiators:
- Strong Emphasis on Optical Bonding: Faytech frequently highlights its in-house “Clear-Bond” optical bonding as a standard or readily available feature, which offers distinct advantages in clarity and durability.
- High Brightness Options: A good selection of models with 1000+ nits for outdoor/bright environments.
- Extensive Range of Sizes: From small to very large format open frames.
- Customization Capabilities: Their background and modular approach may offer more flexibility for OEM/ODM projects.
- Price-Performance: Generally aims to provide a competitive balance of features, quality, and cost.
- Factors to Consider When Choosing an Open Frame Supplier:
- Specific technology needs (e.g., touch type, exact brightness).
- Mechanical fit and integration support (quality of datasheets, 3D models).
- Long-term availability and product lifecycle support (crucial for OEMs).
- Customization options and minimum order quantities (MOQs).
- Warranty and technical support.
(Placeholder: Link to a comparative review or a “Choosing an Open Frame Monitor” guide from an industry source)
10. Investment and Value Proposition for Custom Projects
Faytech’s open frame monitors are positioned to offer good value for projects requiring robust and reliable embedded touch displays.
- Pricing Structure for Open Frame Monitors:
- Prices vary based on size, brightness, resolution, touch technology, and order volume.
- Examples (from Faytech’s site/distributors as of May 2025, approximate):
- Smaller sizes (e.g., 7-10 inch standard brightness): ~$300 – $500
- Mid-sizes (e.g., 15-inch high brightness, optically bonded): ~$700 – $900 (e.g., a 15″ FT15TMCAPOFHBOB around $830-$860)
- Larger sizes (e.g., 21.5-inch standard): ~$700 – $950 (e.g., a 21.5″ FT215TMCAPOFHBOB around $930)
- Very large/4K models (e.g., 32-inch or 43-inch high brightness): ~$1900 – $3500+
- It’s always recommended to get direct quotes for specific models and quantities. (Placeholder: Link to Faytech North America’s catalog or contact for quotes)
- Long-Term Value: The investment in a quality open frame monitor like those from Faytech contributes to the overall quality, reliability, and user experience of the final integrated product. Durability features like optical bonding and industrial-grade components can lead to:
- Reduced field failures.
- Lower maintenance costs for the end product.
- Enhanced customer satisfaction.
- Support for Integrators: Faytech typically provides detailed datasheets, mechanical drawings, and technical specifications to aid integration. For larger OEM projects, direct engineering support may be available.
11. Tips for a Successful Faytech Open Frame Integration Project
To ensure a smooth and successful integration:
- Detailed Project Scoping and Requirement Definition:
- Clearly define the end-product’s operational environment, user interaction needs, and desired lifespan.
- Precisely specify display size, brightness, resolution, touch requirements, and connectivity.
- Leveraging Faytech’s Documentation and Support:
- Thoroughly review all datasheets and mechanical drawings before finalizing enclosure designs.
- Contact Faytech or their distributors with any technical queries early in the design process.
- Prototyping and Testing Before Mass Production:
- Build and test a prototype of the integrated system to verify mechanical fit, electrical connections, thermal performance, and user experience.
- Conduct environmental testing on the prototype if the end product will operate in harsh conditions.
- Considering the Entire Lifecycle of the End Product:
- Design for serviceability if components might need replacement or access in the future.
- Consider the long-term availability of the chosen open frame model if your product will have a long production run.
12. Conclusion: Empowering Custom Solutions with Faytech Open Frame Touch Screens
Faytech North America’s Open Frame Touch Screen Monitors offer a robust and versatile platform for system integrators, kiosk manufacturers, and OEMs looking to embed high-quality interactive displays into their custom solutions. With a strong emphasis on optical bonding for enhanced clarity and durability, a wide range of sizes and brightness options, and a design philosophy geared towards seamless integration, Faytech provides compelling components for a multitude of demanding applications.
- Summary of Faytech’s Strengths in the Open Frame Segment:
- Excellent visual quality and durability due to prevalent use of optical bonding.
- Wide selection of sizes (7″ to 55″+) and high-brightness options.
- Reliable PCAP multi-touch technology with durable glass surfaces.
- Designed for easy mechanical integration (VESA, clamp supports).
- Commitment to industrial-grade components and long operational life.
- Good potential for customization for OEM projects.
- Recommendations for OEMs, Kiosk Manufacturers, and System Integrators: Faytech’s open frame monitors are a strong choice when the project demands a professional, integrated look combined with reliable performance in commercial or industrial settings. They are particularly well-suited for:
- Interactive kiosks requiring excellent readability and robust touch.
- Industrial HMI applications where a flush-mounted, durable display is needed.
- Custom digital signage and interactive information systems.
- Any OEM product where a high-quality, embedded touch interface is a key feature.
- The Future of Integrated Touch Displays and Faytech’s Role: As the demand for embedded and interactive touch solutions continues to grow across all industries, the need for reliable, high-performance open frame monitors will only increase. Faytech, with its focus on core display and touch technologies like optical bonding and its flexible manufacturing capabilities, is well-positioned to continue serving this vital market segment. For integrators looking for a partner that understands the nuances of embedding touch technology, Faytech North America presents a valuable option.
